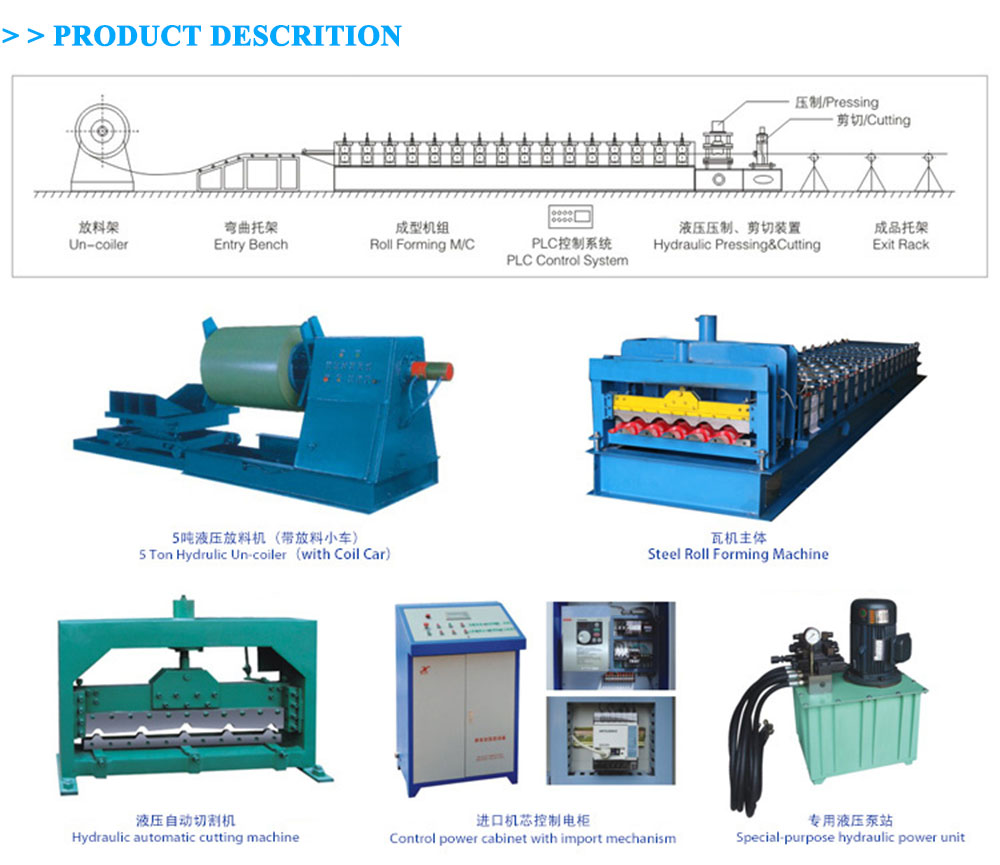

Product Description
| 3700 | 3200 | 4100 | 4300 | |

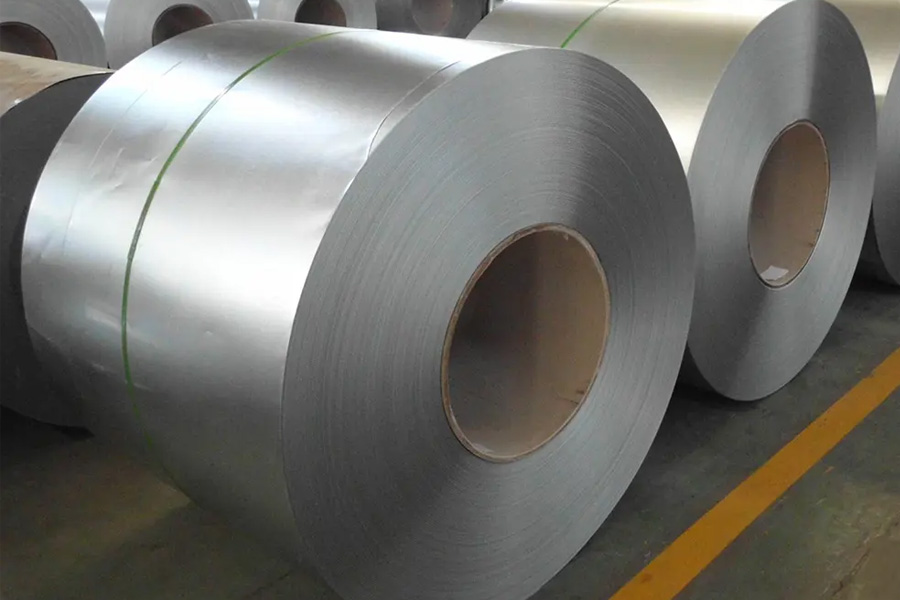

| Raw material specifications | Full-hard galvanized sheet, galvanized sheet | |||
| Raw material width | 750mm--1000mm | |||
| Material thickness | 0.12~0.3mm | 0.13~0.25mm | 0.12~0.3mm | 0.12~0.3mm |
| Raw material length | ≤3700mm | ≤3200mm | ≤4100mm | ≤4300mm |
| Roofing width | 665mm--900mm | |||
| Roofing wave height | 18mm (adjustable) | |||
| Roofing pitch | 76mm (adjustable) | |||
| Equipment weight | 9.3 tons | 8.5 tons | 9.3 tons | 10 tons |
| Motor power | 11KW (frequency conversion speed regulation) | 7.5KW (frequency conversion speed regulation) | 15KW (frequency conversion speed regulation) | 15KW (frequency conversion speed regulation) |
| Feeding speed | 0-17 times/minute | |||
| Equipment size | 5500mm*2200mm*1500mm | 5000mm*2200mm*1500mm | 5900mm*2200mm*1500mm | 6100mm*2200mm*1500mm |

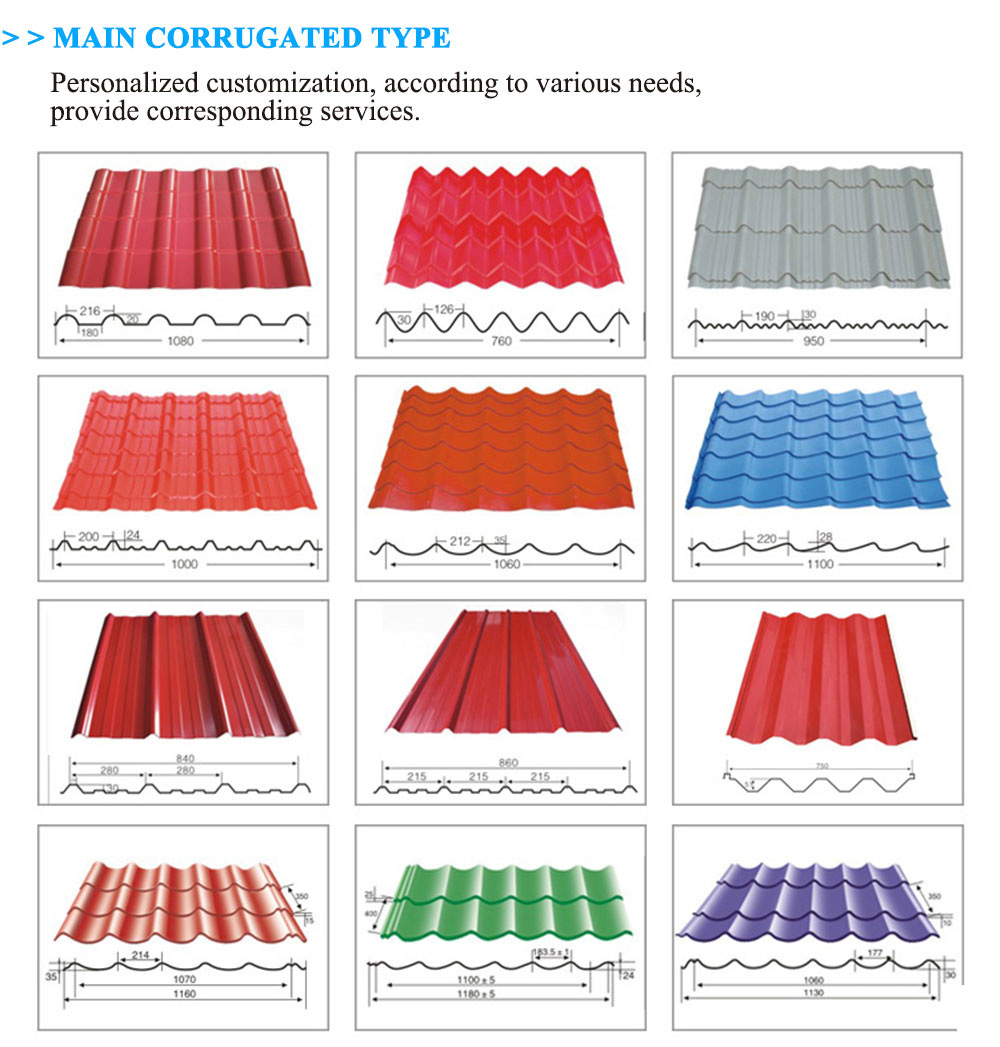

| Conventional tile specifications | The raw material width is 1000mm, 900mm after forming, 12 waves; | The raw material width is 1000mm, 900mm after forming, 12 waves; | The raw material width is 1000mm, 900mm after forming, 12 waves; | The raw material width is 1000mm, 900mm after forming, 12 waves; |
| The width of the raw material is 900mm, after molding, 800mm, 11 waves; | The width of the raw material is 900mm, after molding, 800mm, 11 waves; | The width of the raw material is 900mm, after molding, 800mm, 11 waves; | The width of the raw material is 900mm, after molding, 800mm, 11 waves; | |
| Width of raw material 750mm, 665mm after molding, 9 waves | Width of raw material 750mm, 665mm after molding, 9 waves | Width of raw material 750mm, 665mm after molding, 9 waves | Width of raw material 750mm, 665mm after molding, 9 waves | |
