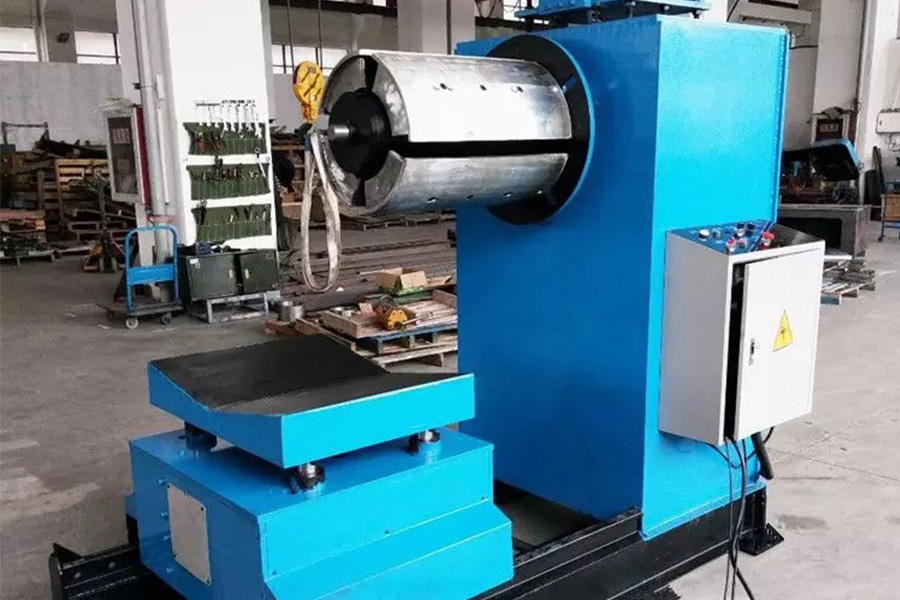

Roll Forming Machine Hydraulic Decoiler Machine Uncoiler for Steel Coil
Product Description:
Uncoils are specalized equipment for leveling metal sheets, They are used to level steel anduneven sheets, Depending on the configuration, they can be used to create uncoiling, levelingshearing, and other sheet product lines.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
| Item | Model | NCBF-400 | NCBF-500 | NCBF-600 | NCBF-700 | NCBF-800 | NCBF-1000 |
| Material thickness | 0.5-6.0(Straighteningrollerl68x4up/3down) | ||||||
| Material width | mm | 400 | 500 | 600 | 700 | 800 | 1000 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1500 | Ф1500 | Ф1500 | Ф1500 | Ф1500 | Ф1500 |
| Coil weight | kg | 2000 | 3000 | 5000 | 5000 | 5000 | 5000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
| Straightening power | kw | 4.4 | 4.4 | 5.5 | 5.5 | 5.5 | 7.5 |
| Expansion style | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | |
| Size | m | 4.5x1.9x1.8 | 4.5x2.0x1.8 | 4.5x2.1x1.8 | 4.5x2.3x1.8 | 4.5x2.5x1.8 | 4.5x2.8x1.8 |
| Weight | kg | ~3200 | ~3900 | ~4800 | ~5100 | ~5600 | ~6200 |
| Model | NCGK-500 | NCGK-800 | NCGK-1000 | NCGK-1300 | |
| Ltem | |||||
| Material thickness | 1.5-8.0(Straighteningrollerl84x5up/5down) | ||||
| Material width | mm | 500 | 800 | 1000 | 1300 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1400 | Ф1400 | Ф1400 | Ф1400 |
| Coil weight | kg | 5000 | 5000 | 7000 | 7000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 |
| Straightening power | kw | 5.5 | 5.5 | 7.5 | 11 |
| Expansion style | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | |
