High Speed Metal Slitting Machine Matrial Thicknes 1.5 mm for Steel Coil
Product Description:
| Model NO. | slitting cutting machine |
| Drive Mode | CNC |
| Condition | New |
| Material | Hot Rolled Plate, Cold Galvanized Steel,Corbon Ste |
| Line Speed | 50m/Min |
| Slitting Quantity | 25 Strip |
| Width Acuracy | 0.1mm |
| Coil Weight | 10t |
| Thickness | 0.3-3.0mm |
| Coil Width | 1250mm |
| Transport Package | Plastic Coating with Container |
| Specification | 40 feet |
| Origin | China |
| Production Capacity | 500 Sets/Year |
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description

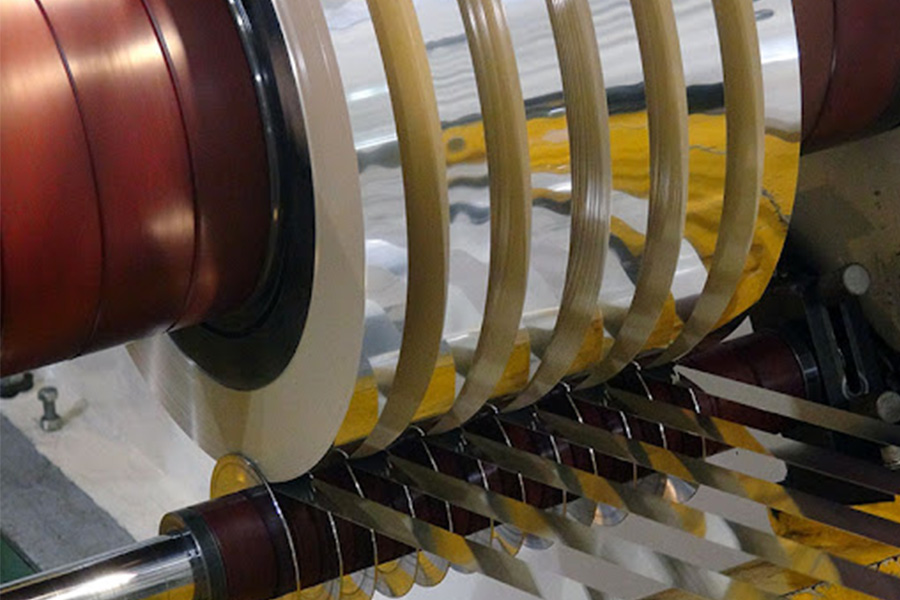

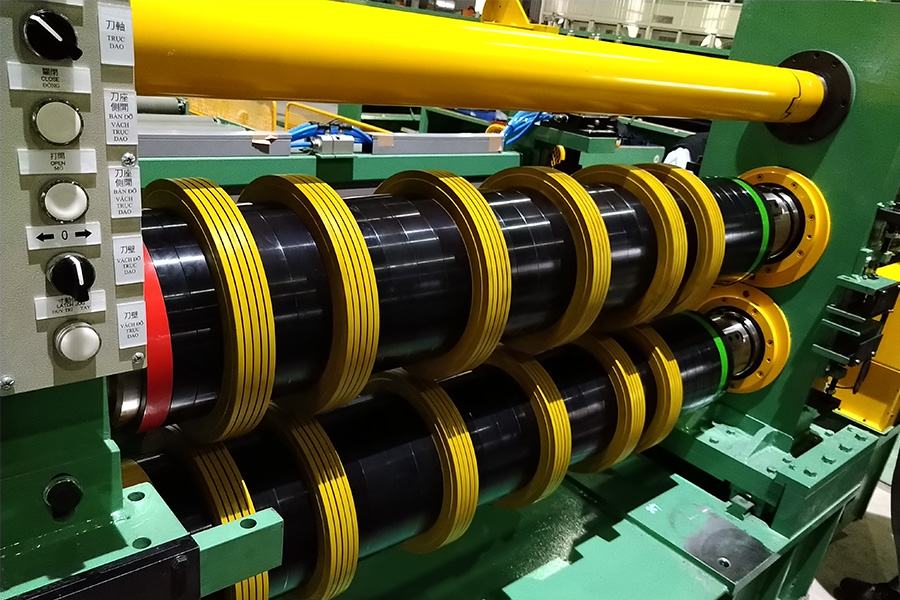

| Core Working Principle: Continuous cutting is achieved through a rolling shearing process using a circular blade. A servo motor drives the rollers, achieving a maximum line speed of 200 m/min. Polyurethane washers provide elastic support during the cutting process, avoiding the indentation problems associated with traditional slitting. |
| Metal Processing Applications: Processing materials such as hot-rolled sheet, galvanized sheet, and stainless steel, with a thickness range of 0.2-4.0 mm and a maximum slitting capacity of 20 strips. |

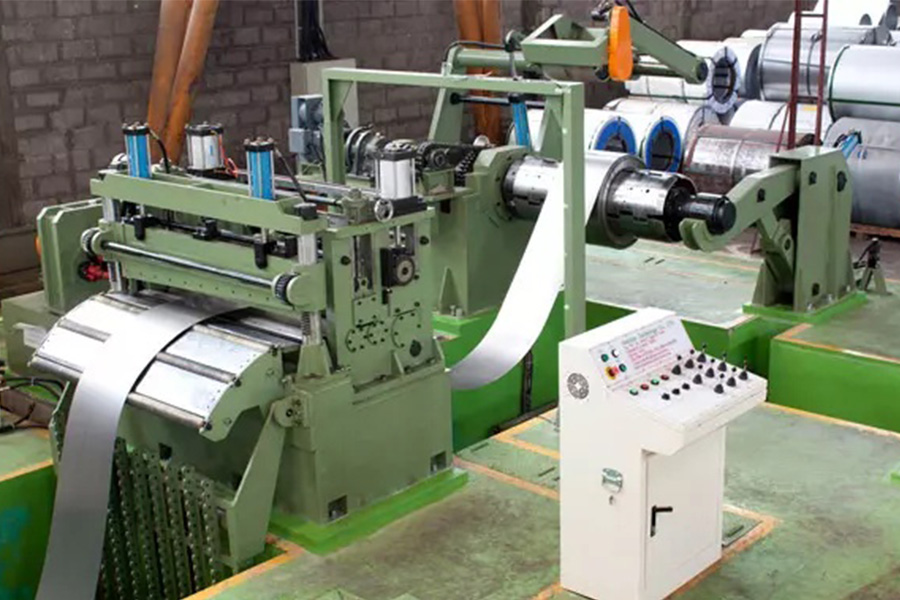

| The uncoiling process is performed using an uncoiler. This uncoiler is a specialized piece of equipment for leveling metal sheets. It is used to level steel and uneven sheet metal. Depending on the configuration, it can be combined with an uncoiling, leveling, and shearing line, as well as other sheet product lines. Uncoiling is carried out through the processes of loading preparation - fixed centering - uncoiling and tension control - conveyor roller taking out, providing conditions for subsequent slitting or further processing. |
